Project Description

43.8 kW (DC) Solar Array For Home near Mattoon, Illinois

  • Location
  • Mattoon, IL
  • Total Size
  • 23.1 kW (DC) initial install in 2014
  • 20.7 kW (DC) additional install in 2016
  • Type
  • Roof & Ground Mount
  • Installed
  • 2014 & 2016
  • Utility
  • Shelby Electric



Project Statistics

  • 2014

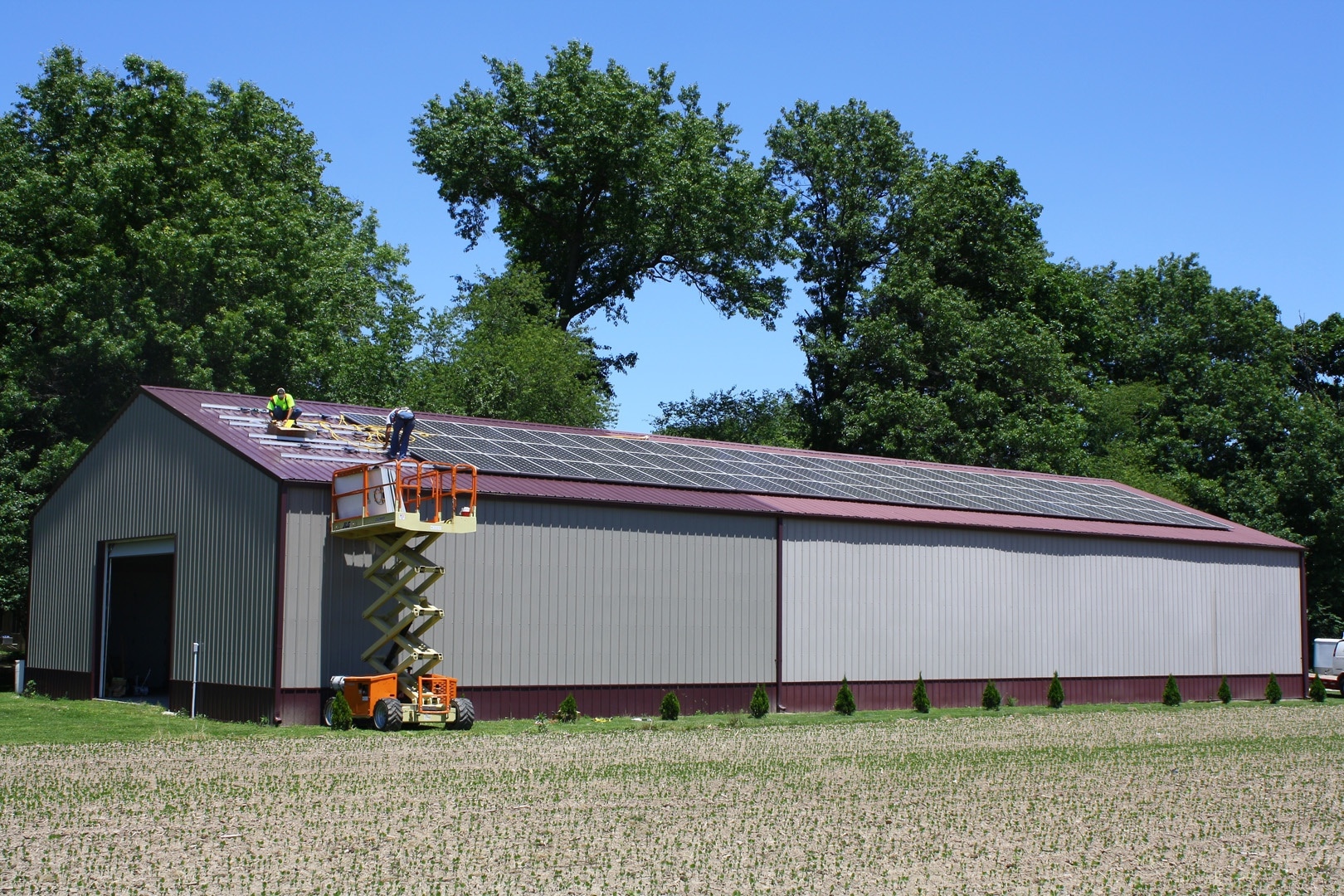

    • ROOF: Seventy-Eight (78) LG300 300 Watt Solar Panels
    • ROOF: Seventy-Eight (78) M250 Microinverters
  • 2016
    • ROOF: Nine (9) SolarWorld 285 Watt Mono Solar Panels
    • ROOF: Nine (9) M250 Microinverters

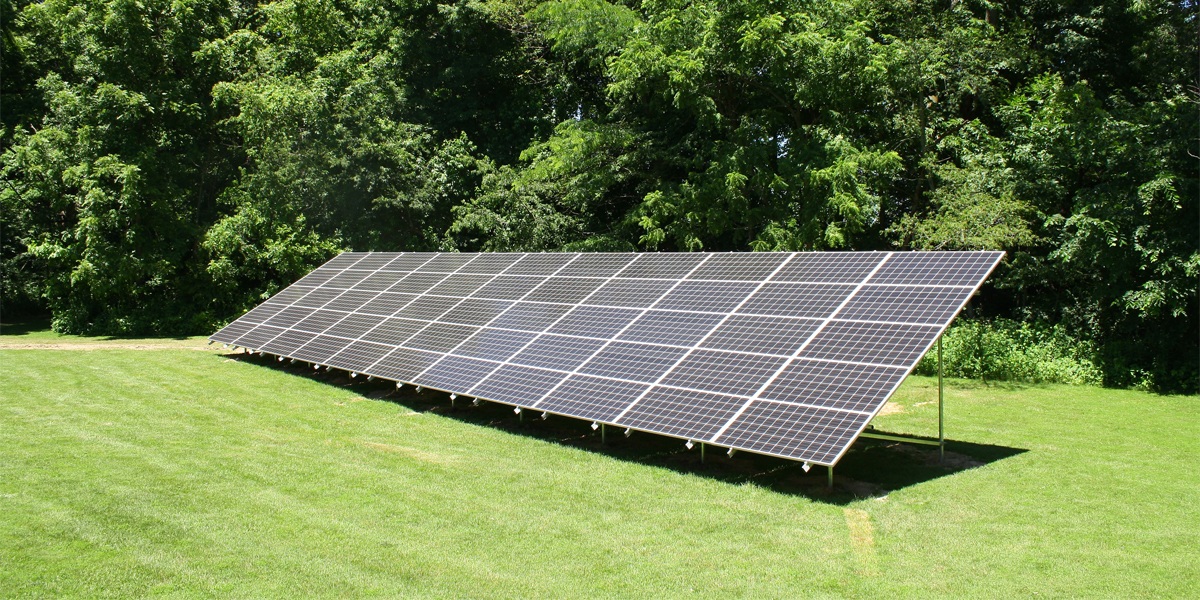

    • GROUND: Fifty-Five (55) Suniva 330 Watt Solar Panels

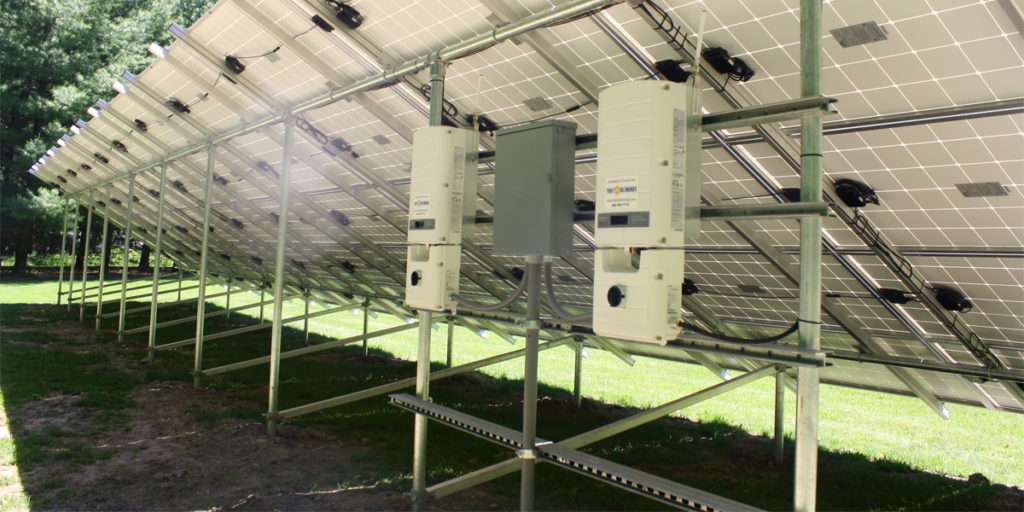

    • GROUND: Two (2) Solar Edge SE7600A-US Inverters

Estimated Impact

  • Annual Energy Output: 61,055 kWh/yr
