205 kW Commercial Solar Installation for Flying S, Inc., in Palestine

Location
Palestine, IL
Installed
July 2016
Type

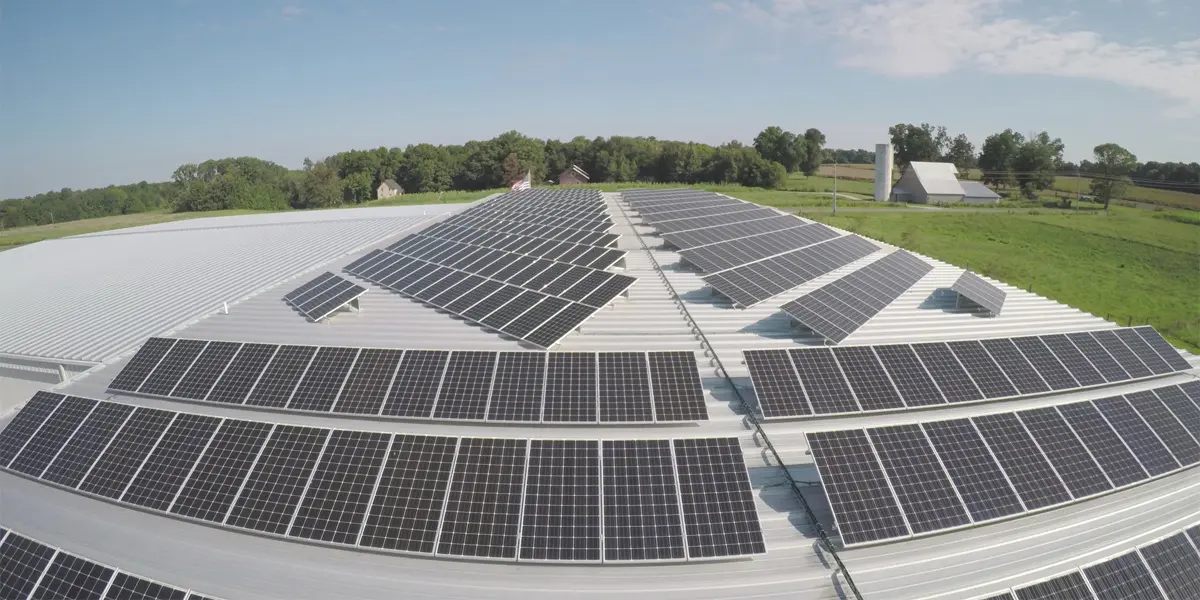

Roof Mount
Utility
Norris Electric
Total Size
204.6 kW (DC)
Solar Equipment
  • Six Hundred Twenty (620) Suniva 330 Watt Solar Panels

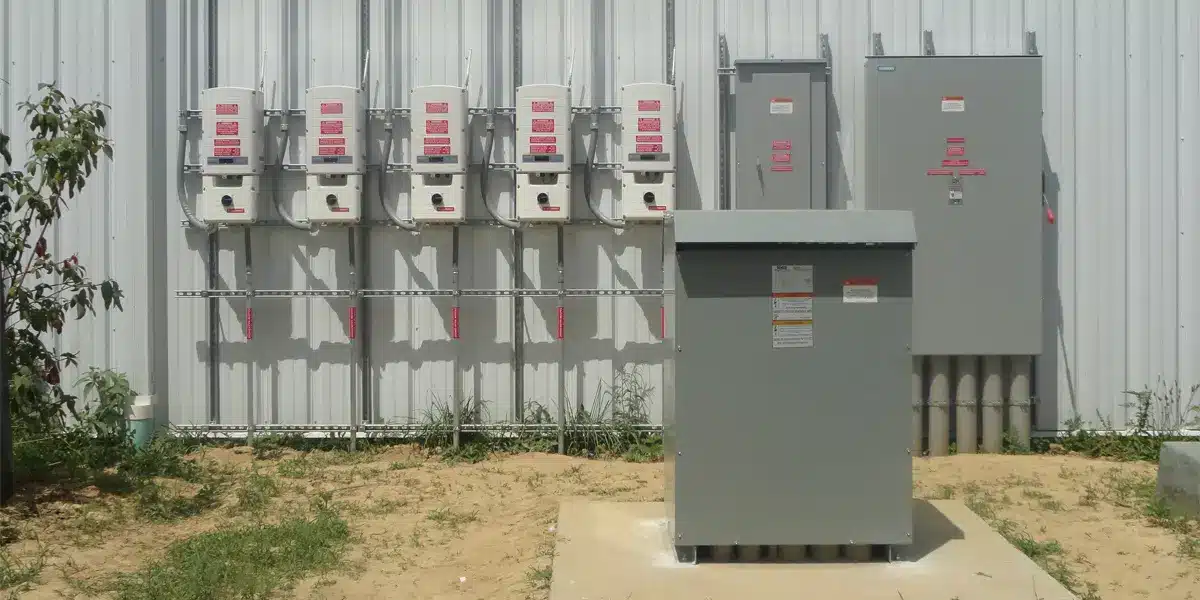

  • Five (5) SolarEdge 33.3 Solar Inverters
  • Solar Rack by Advanced Racking
  • Array Size: 12,900 sq. ft.
Estimated Impact
  • Electricity Output: 278,700 kWh/yr
  • Electricity Savings in Years 1-10: $300,000
  • Return on Investment (ROI): 14.8%

Details

Electric Submetering & Power Monitoring System
In addition to the 204.6 kW (DC) solar PV installation, an electrical submetering system with web-based dashboard was also installed.  The buildingโ€™s main electrical feed, solar PV output, and all major subpanels are monitored.  The energy dashboard provides detailed electrical load info to help support on-going energy management efforts to reduce consumption (kWh) and power demand (kW).
